HYDROBLEND SYSTEMS



Designed with simplicity and practicality in mind

FEED SYSTEMS

HydroBlend® feed systems ensure that the product feed rates are consistent over predictable time periods. HydroBlend® products are available in various configurations allowing its application to many different processes.

HydroBlend® is used in a solid block cartridge form, exposing to the water a predetermined fixed surface area from which accurate feed rates can be predicted. HydroBlend® systems consist of Media Delivery Heads (Prefilter or Flow-Thru) that are paired with various cartridge designs based on water flow rates, line size, and other usage characteristics. Unlike standard polyphosphate treatment, HydroBlend® Systems allow various configurations to meet most treatment requirements with the goal of obtaining proper feed rates for desired treatment volumes.

PREFILTER

Hydroblend ® ScaleStick®    Systems utilize a standard prefilter head to dispense the media

FLOW THRU

Standard Hydroblend ® Systems utilize a flow thru head to dispense the media

SCALESTICK SYSTEMS

ScaleStick Systems are a special HydroBlend feed system developed to be used with prefilter heads


The ScaleStick® water treatment line includes a variety of cartridge configurations allowing their use in many different water treatment applications. The ScaleStick® feed system can be tailored to meet various equipment or user demands including flow rates, frequency of use, and desired treatment duration.

ScaleStick® Systems utilize drop-in style housings where the same housing is used and cartridges are exchanged periodically. These are available in Single or Twin Housings. The High Temp ScaleStick® Systems are to be used on dedicated hot water lines primarily for warewash applications. ScaleStick® Twin systems are offered with Sediment or Carbon Block Filters in housings that accept 10″, 16″ or 20″ filters.

Standard PF-10 SS Systems

High Temp ScaleStick Systems

ScaleStick Twin Systems

STADARD PF-10 SS SYSTEMS HIGH TEMP SCALESTICK SYSTEMS SCALESTICK TWIN SYSTEMS

STADARD PF-10 SS SYSTEMS

The PF-10 SS-10 is typically used in foodservice applications, primarily on ice machines where the water usage is generally higher than on most other beverage equipment.

Applications:                                      Ice Machines                                     High Volume Coffee Equipment Boiler Based Steamers                     RO Pretreatment                       Misting Systems

Replacement Cartridge:   SS-10 ScaleStick

Flow Rate Range:                    1-2 gpm.

​Est. Treatment Capacity:
​10,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:        125 psi. / 100°F

The PF-10 SS-XL is typically used in foodservice and tankless water heaters applications.

Applications:                                  Large Ice Machines                  Multiple Coffee/Tea Equipment Tankless WaterHeaters

Replacement Cartridge:   SS-XL ScaleStick​

Flow Rate Range:                    1-3 gpm.

​Est. Treatment Capacity:
​20,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:        125 psi. / 100°F

The PF-10 SS-EXT is designed for some foodservice, residential, and light commercial applications.

Applications:                                Whole Home                                     POE -  Small Restaurant        Tankless Water Heaters

Replacement Cartridge:   SS-EXT ScaleStick​

Flow Rate Range:                    2-4 gpm.

​Est. Treatment Capacity:
​40,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:        125 psi. / 100°F

The PF-10 SS-MAX is designed for foodservice and commercial applications.

Applications:                                    POE Applications                     Tankless Water Heaters

Replacement Cartridge:   SS-MAX ScaleStick​

Flow Rate Range:                    2-6 gpm.

​Est. Treatment Capacity:
​60,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:        125 psi. / 100°F

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

HIGH TEMP SCALESTICK SYSTEMS

The SC-605 is the primarily used in residential applications. A single cartridge will last roughly 12 months in an average residence.

Applications:                        Residential Whole House                 RO Pretreatment                             POE Convenience Store / Fast Food Water Heaters

Notes: Use HW cartridge for Scale Control or CW Cartridge for Corrosion Control

Replacement  Cartridge: RSC-5 (HW or CW) ​

Flow Rate Range:                    1-4 gpm.

​Est. Treatment Capacity:
​40  ,000 gallons

Inlet/Outlet Connections:
3/4” , 1”

Max Pres / Max Temp:         125 psi. / 100°F

The HBW SS-XL is designed for use in hot water fed equipment, primarily dish machines. The exclusive translucent high-temp housing is rated up to 160°F and 150 psi.

Warewash Applications:          Under Counter                                 Door Style (low usage)

Replacement Cartridge:   SS-XL ScaleStick​

Flow Rate Range:                    1-3 gpm.

​Est. Treatment Capacity:
​15,000 gallons

Inlet/Outlet Connections:
3/4”

Max Pres / Max Temp:        150 psi. / 160°F

The HBW SS-EXT is designed for use in hot water fed equipment, primarily dish machines . The exclusive translucent high-temp housing is rated up to 160°F and 150 psi.

Warewash Applications:            Door Style                                 Conveyor (average usage)

Replacement Cartridge:   SS-EXT ScaleStick​

Flow Rate Range:                    2-4 gpm.

​Est. Treatment Capacity:
​35,000 gallons

Inlet/Outlet Connections:
3/4”

Max Pres / Max Temp:        150 psi. / 160°F

The HBW SS-MAX is designed for use in hot water fed equipment, primarily high usage dish machines. The exclusive translucent high-temp housing is rated up to 160°F and 150 psi.

Warewash Applications:    Conveyor                                         Flight Type

Replacement Cartridge:   SS-MAX ScaleStick​

Flow Rate Range:                    2-6 gpm.

​Est. Treatment Capacity:
​50,000 gallons

Inlet/Outlet Connections:
3/4”

Max Pres / Max Temp:        150 psi. / 160°F

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

SCALESTICK TWIN SYSTEMS

The FA-SS-SD-TW is used in foodservice applications with moderate flow rates. it provides pre filtration flexibility and higher loading capacities.

Applications:                                      Ice Machines

Replacement  Cartridges: SD-510 Sediment Filter       SS-10 ScaleStick

Flow Rate Range:                    1-2 gpm.

​Est. Treatment Capacity:
​10,000 gallons

Inlet/Outlet Connections:
1/2”, 3/4”

Max Pres / Max Temp:        125 psi. / 100°F

The FA-SS-CB-TW is used in foodservice applications with moderate flow rates. it provides pre filtration flexibility with chlorine removal and higher loading capacities.

Applications:                                      Ice Machines                                     Coffee Equipment                         Boiler Based Steamers           Proofers

Replacement Cartridges:   CB-10 Carbon Block             SS-10 ScaleStick​

Flow Rate Range:                    1-2 gpm.

​Est. Treatment Capacity:
​10,000 gallons

Inlet/Outlet Connections:
1/2”, 3/4”

Max Pres / Max Temp:        125 psi. / 100°F

The FA-SS-SD-TW 16 is used in foodservice applications with average flow rates. it provides pre filtration flexibility and higher loading capacities.

Applications:                                      Ice Machines

Replacement Cartridges:   SD-516 Sediment Filter       SS-10 ScaleStick

Flow Rate Range:                    2-4 gpm.

​Est. Treatment Capacity:
​15,000 gallons

Inlet/Outlet Connections:
1/2”, 3/4”

Max Pres / Max Temp:        125 psi. / 100°F

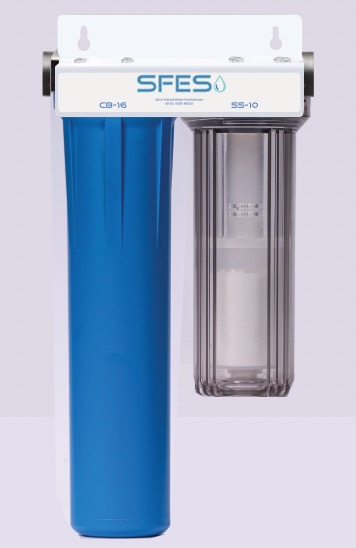

The FA-SS-CB-TW 16 is used in foodservice applications with average flow rates. it provides pre filtration flexibility with chlorine removal and higher loading capacities.

Applications:                                      Ice Machines                                     Coffee Equipment                         Boiler Based Steamers                     Proofers

Replacement Cartridges:   CB-16 Carbon Block             SS-10 ScaleStick​

Flow Rate Range:                    2-4 gpm.

​Est. Treatment Capacity:
​15,000 gallons

Inlet/Outlet Connections:
1/2”, 3/4”

Max Pres / Max Temp:        125 psi. / 100°F

The FA-SS-SD-TW 20 is used in foodservice applications with high flow rates. it provides pre filtration flexibility and higher loading capacities.

Applications:                                      Ice Machines

Replacement Cartridges:   SD-520 Sediment Filter       SS-10 ScaleStick

Flow Rate Range:                    2-6 gpm.

​Est. Treatment Capacity:
​20,000 gallons

Inlet/Outlet Connections:
1/2”, 3/4”

Max Pres / Max Temp:        125 psi. / 100°F

The FA-SS-CB-TW 20 is used in foodservice applications with high flow rates. it provides pre filtration flexibility with chlorine removal and higher loading capacities.

Applications:                                      Ice Machines                                     Coffee Equipment                         Boiler Based Steamers           Proofers

Replacement Cartridges:   CB-20 Carbon Block             SS-10 ScaleStick​

Flow Rate Range:                    2-6 gpm.

​Est. Treatment Capacity:
​20,000 gallons

Inlet/Outlet Connections:
1/2”, 3/4”

Max Pres / Max Temp:        125 psi. / 100°F

The HBW SS-MAX  is the primarily used in residential applications. A single cartridge will last roughly 12 months in an average residence.

Applications:                        Residential Whole House                 RO Pretreatment                             POE Convenience Store / Fast Food Water Heaters

Notes: Use HW cartridge for Scale Control or CW Cartridge for Corrosion Control

Replacement Cartridge:   SS-MAX ScaleStick​

Flow Rate Range:                    1-4 gpm.

​Est. Treatment Capacity:
​40  ,000 gallons

Inlet/Outlet Connections:
3/4” , 1”

Max Pres / Max Temp:         125 psi. / 100°F

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

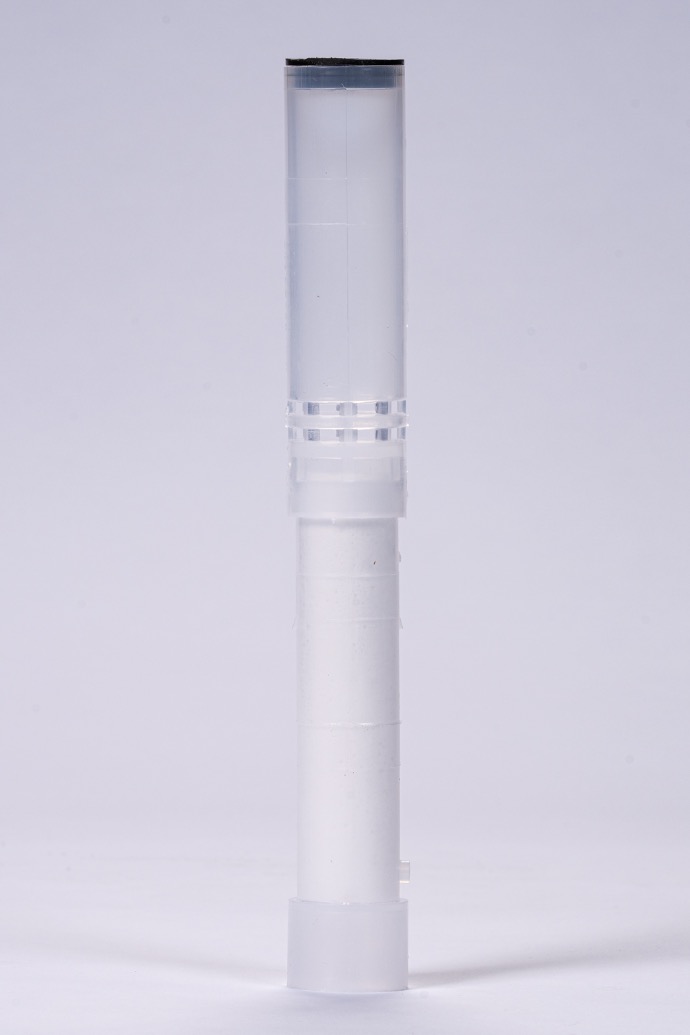

SCALESTICK CARTRIDGES

ScaleStick cartridges fit standard 10″ filter housings allowing them to be used with any number of standard housings that accept 10" filter cartridges in new or existing applications.

SS-10 SS-XL SS-EXT SS-MAX

SS-10

The  SS-10 ScaleStick is a stand alone cartridge that fits standard 10” water filter housings. It is typically used in foodservice applications, primarily on ice machines where the water usage is generally higher than on most other beverage equipment.

Preferred Flow Rate Range: 1-2 gpm.
 Applications: Ice Machines, High Volume Coffee/Tea, Boiler Based Steamers & Combination Ovens, Proofers, Deck/Rack Ovens, RO Pretreatment, Misting Systems, Swamp Coolers

SS-XL

The SS-XL ScaleStick is a stand alone cartridge that fits standard 10” water filter housings. It is typically used in foodservice and tankless water heaters applications.

Preferred Flow Rate Range: 1-3 gpm.
 Applications: Large Ice Machines, Multiple Coffee/Tea Equipment, Warewash Equipment, Small Tankless Heaters, RO Pretreatment, Misting Systems

SS-EXT

The  SS-EXT ScaleStick is designed for some foodservice, residential, and light commercial applications.  Its larger diameter makes it suitable for medium size warewash applications and some POE installations in small establishments. Residential applications include whole house water treatment.

Preferred Flow Rate Range: 2-4 gpm.
 Applications: Warewash, Whole Home or Small Restaurant, RO Pretreatment, Tankless Water Heaters

SS-MAX

The SS-MAX ScaleStick is a longer version of the SS-EXT that was designed for the same foodservice and light commercial applications.  Its sizer makes it suitable for higher demand ware wash applications and some POE installations. It's feed rate is similar to that for the SS-EXT, however, the length of the cartridge allows for longer treatment periods in between cartridge replacements.

Preferred Flow Rate Range: 2-6 gpm.
 Applications:  Flight Type or High Usage Warewash, POE Applications,  RO Pretreatment, Tankless Water Heaters

FLOW THRU SYSTEMS

SC-605 SC-610 HBW SC-1.0 & 1.5

SC-605

The SC-605 is the primarily used in residential applications. A single cartridge will last roughly 12 months in an average residence.

Applications:                        Residential Whole House                 RO Pretreatment                             POE Convenience Store / Fast Food Water Heaters

Notes: Use HW cartridge for Scale Control or CW Cartridge for Corrosion Control

Replacement  Cartridge: RSC-5 (HW or CW) ​

Flow Rate Range:                   1-4 gpm.

​Est. Treatment Capacity:
​40 ,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:         125 psi. / 100°F

SC-610

The SC-610 is ideal for small commercial and food service applications. It is primarily used in applications where the water flow rate averages 4-7 gpm. Not recommended for residential use since higher flow rates are required in order to use the entire cartridge.

Applications:                                       RO Pretreatment                         Water Heaters                                   POE Convenience Store / Fast Food Cooling Towers

Notes: Consistent flow rates of 4 gpm. or higher needed, otherwise percentage of product may remain unused.

Replacement  Cartridge: RSC-10 HW

Flow Rate Range:                   4-7 gpm.

​Est. Treatment Capacity:
​80,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:            125 psi. / 100°F

HBW

The HBW is designed for use in hot water fed equipment, primarily dish machines and booster heaters. The exclusive translucent high-temp housing is rated up to 160°F and 150 psi.

Applications:                     Commercial Dish Machines   Booster Heaters                                 Hot water feed application in flow range.

Notes:  ScaleStick® based cartridges can be used in high-temp housing with standard filter heads.

Replacement  Cartridge: RSC-10 HW

Flow Rate Range:                     2-7 gpm.

​Est. Treatment  Capacity:
65,000 gallons

Inlet/Outlet Connections:
3/4”, 1”

Max Pres / Max Temp:           150 psi. / 160°F

SC-1.0 & 1.5

The SC-1.0 & 1.5 units are for commercial and industrial applications where high water usage is expected and flow rates average a minimum of 7.5 gpm.

Applications:                                  Light Commercial Water Heaters Boilers                                           Cooling Towers                         Laundry                               Apartments.

Notes: Minimum flow requirements should be followed, otherwise product overfeeding may occur.

green leafed plant

Replacement  Cartridge: RSC-1.5​

Flow Rate Range:                   7-15 gpm.

​Est. Treatment Capacity: 500,000 gallons

Inlet/Outlet Connections:
1”, 1.5”

Max Pres / Max Temp:           80  psi. / 100°F
